Skylights



Solar Solutions offers a wide range of standard skylight products to suit your needs. From Fixed flat flush glazed skylights for sloped roofs to Pyramid or Octagonal skylights for flat roof applications. Solar Solutions also offers a design service for custom made skylights should you require something a bit different.

All our skylights are manufactured with the minimum amount of internal framework to ensure you get maximum day light and visibility through the product. All skylights are manufactured from aluminum and safety glass ensuring a long life span and minimum maintenance.

Our standard units, available in multiple shapes, colours and materials offer you the simplest solution and best value for your money. We can also design and manufacture a custom solution to suit your specific requirements. We are stokist of Rainbow, Valiant, Solis, Vikon skylights

?

Options

Flat

?

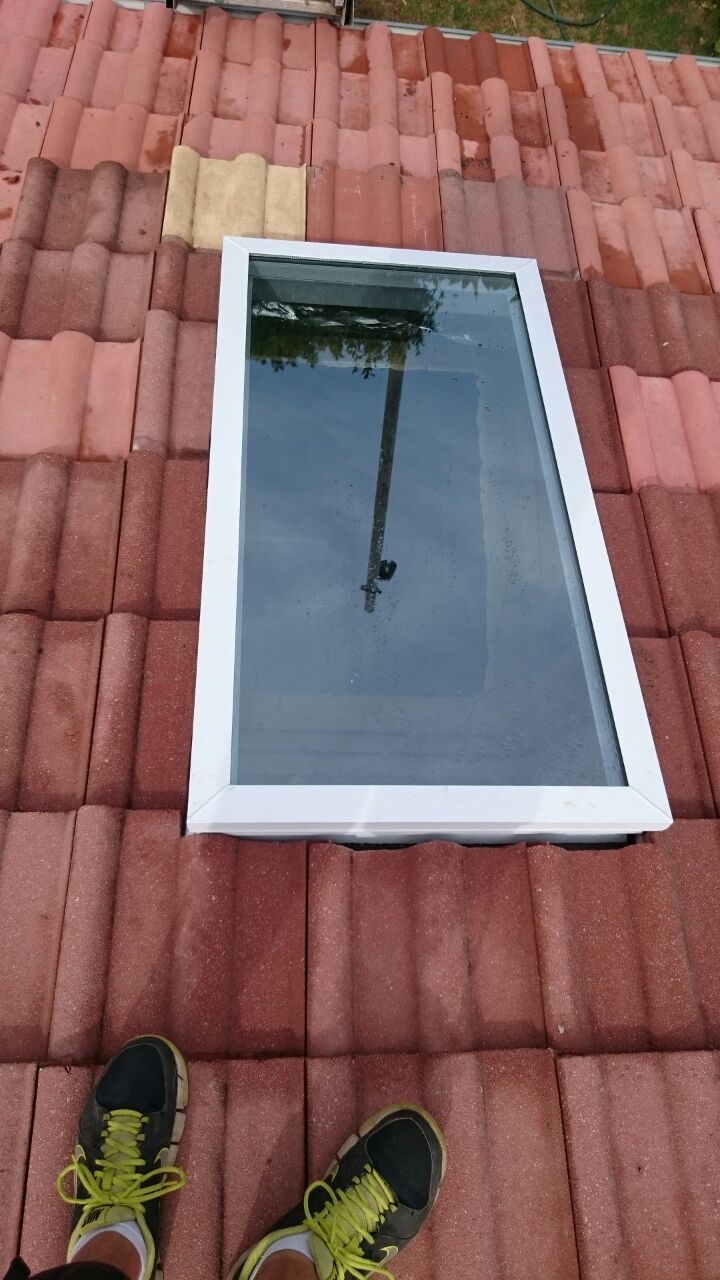

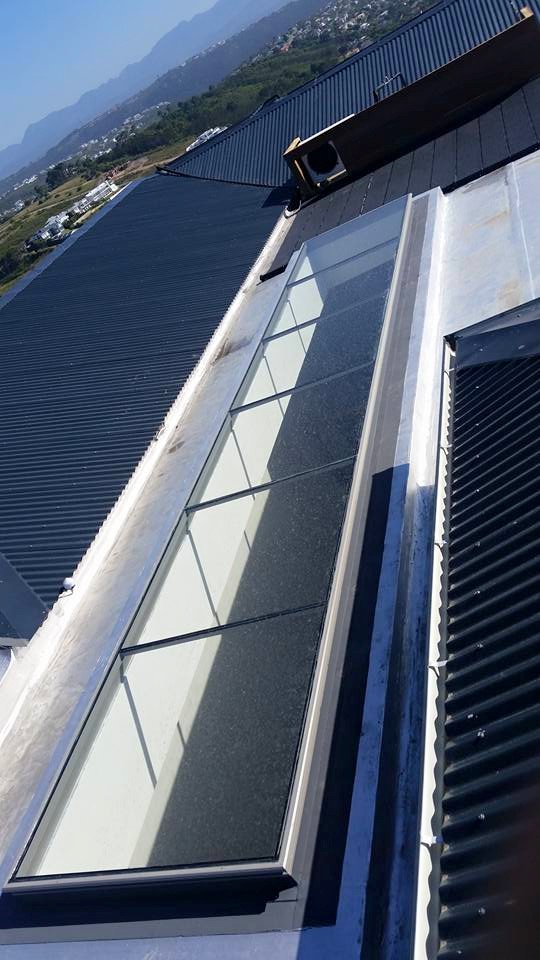

Flat skylights



 Are generally made from Safety Glass - either toughened or laminated.

The are functional as well as being focal points in the architecture of the home.

The glass is supported by an aluminium frame which is manufactured to suit the application.

Flat skylights are cost effective and work well for any application.

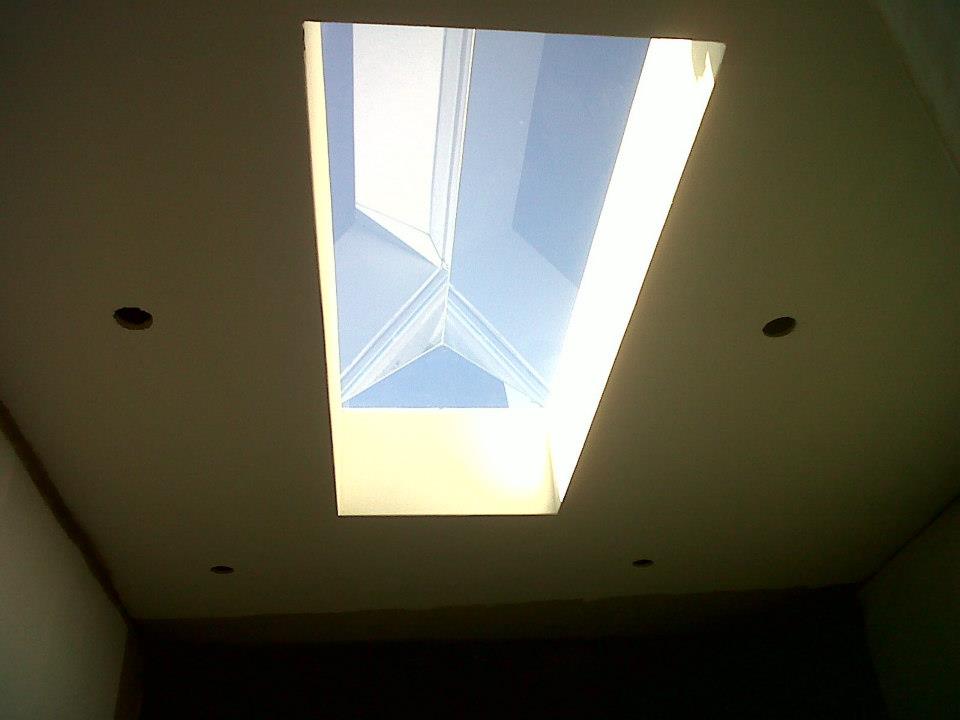

Pyramid Skylights



The Pyramid consists of a self-flashing aluminium base frame, designed to fit onto any type of roof or curb. Available with or without a ventilation system. Pitched roof, Tiled, slate, or corrugated iron. Flat roof, Concrete or IBR, etc. The frame is a self-flashing aluminium base, welded on four corners and fixed onto the roof surface either by nails or screws.

The glazing system is an aluminium arch and clamp, totally leak-proof and maintenance free. The clamp is fitted onto the arch with self-tapping stainless steel screws in such a way that no leak is possible. It is fitted with a non-perishable EPDM rubber sealer for smooth thermal expansion and contraction of the glazing material.

Glazing material is available in both acrylic and poly-carbonate, in a choice of colours, allowing solar energy control (heat build-up) through the various light and thermal transmissions.

The ventilation system fitted along the base frame or the gable end, allows airflow. It can be controlled or fixed. When fitted, the ventilation system adds on only 100mm in height.



Ventilation System

A ventilation system can be fitted on each gable end. It is available as louvre, extractor fan or ridge-cap ventilation.

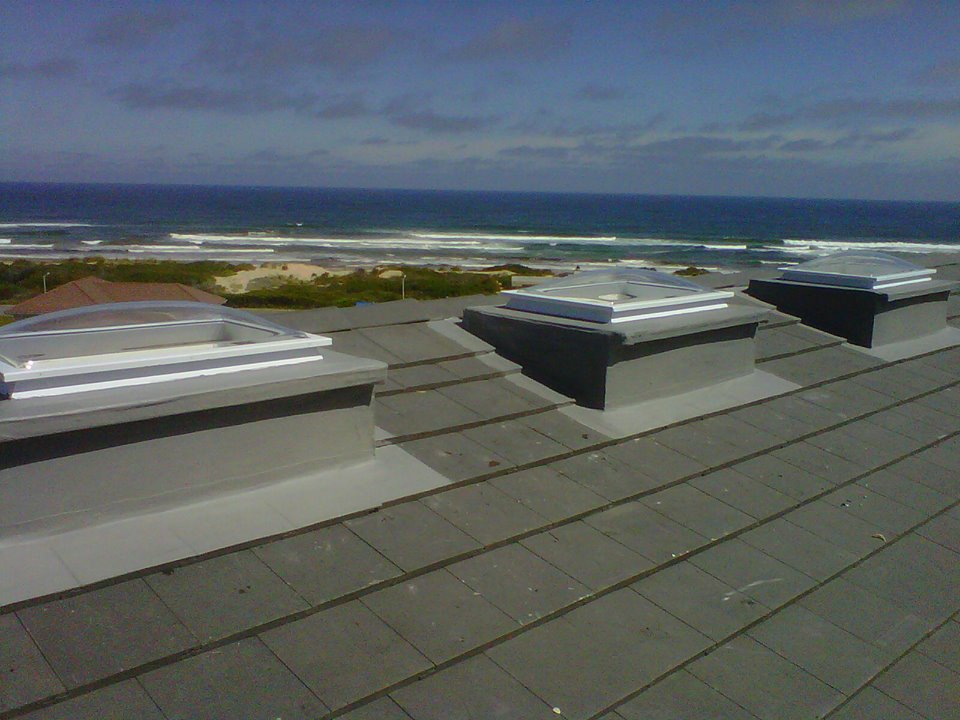

Dome

The Dome can be designed to fit into any base line structure, such as steel, timber or masonry.

The glazing system

The glazing system is an aluminium structural arch to suit the spanning capability. The clamp, fitted on with self-tapping stainless steel screws, creates a totally leakproof, maintenance-free system. It is fitted with an EPDM non-perishable rubber sealer, for a smooth thermal expansion and contraction of the glazing material.



Glazing material

Glazing material is available in both acrylic and poly-carbonate, in a choice of colours, allowing solar energy control (heat build-up) through the various light and thermal transmissions.

The ventilation system fitted along the base frame or the gable end, allows airflow. It can be controlled or fixed. When fitted, the ventilation system adds on only 100mm in height.





ROUND



Are generally fitted to a concrete slab roof. During construction, a round hole is formed using shuttering board (generally masonite), After the shuttering form work is removed, a layer or two of brickwork is built around the hole, forming an "upstand". The roof will usually have a topping of screed on top, to allow the water to run to the drain point. After the roof is completely waterproofed, including the upstand around the skylight hole, the skylight can be fitted.



Avalable in clear, bronze or tinted acrylic.  White or bronze powder coated frames.
























Let Solar Solutons add a touch of Luxury to your home.  Skylights have a directly positive impact on us increasing energy levels and elevating our moods.



Natural Light

As electricity prices continue to rise to peak levels, we are all looking for ways to become more economical in our electricity demand. Skylights are an economical and environmentally friendly way of allowing natural light to enter your house and brighten up your rooms. By relying on natural light to lighten up your house you will save countless hours of electricity. Skylight are an extremely efficient way of allowing light to enter your home, far more so than traditional windows on walls.

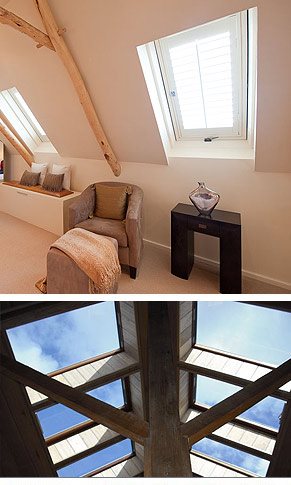

Photo Gallery
Skylights


2160062532897847914752018814454n-2916.jpg 217067631063104764848115428185945579829n-2850.jpg 104692532878347916701514966980n-1004.jpg 216966253288001458320733380212n-877.jpg 2604392532897214581482015010082n-672.jpg 292943253289514791502955533523n-3575.jpg 2932012532880814583121841539094n-4266.jpg 2952802532878981249971467021244n-4111.jpg 296024253288034791650369588269n-1206.jpg 4197802532883781249491483174168n-2375.jpg 424732253287758125011776226783n-3218.jpg 484643253289624791491654431395n 1-1831.jpg 523625253287028125084576883295n-4514.jpg 526302253289731458147402783397n-2399.jpg 5424622532873647917171443445423n-871.jpg 5460482532874947917041546376039n-3704.jpg 5471252532878214583381885223492n-3609.jpg 5516732532882347916301564543277n-960.jpg 5584242532897114581491715017604n-1487.jpg 10445924040117163859471004663135n 1-3864.jpg 10377264638399442947172522293543011580371n-2614.jpg 106141936158326652038507957414116890391898n-442.jpg 106498636158327785371729003214664489690387n-4561.jpg 118921568210383780166105558244844686290128n-3777.jpg 127152839086883659182777937518231924938169n-2949.jpg 1423827210605310240673431170121436951613077n-4020.jpg 145722211091266417660470759687749012184063n-4010.jpg 1472552310912663809938077429264947787921739n-4319.jpg 145722211091266417660470759687749012184063n-2877.jpg 1472552310912663809938077429264947787921739n-3696.jpg DSC1367-1576.JPG IMG20150318WA025-4111.jpg
